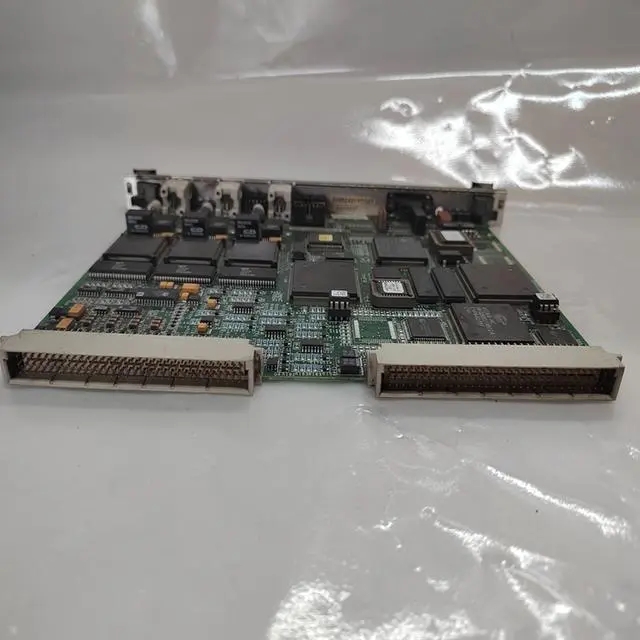

The DS200CTBAG1ADD printed circuit board
The DS200CTBAG1ADD printed circuit board is used as the GE Mark V universal data processor terminal board.While this part has now been placed on legacy status by GE and is no longer supported by the original manufacturer, our company strives to maintain current inventory so that we can better provide our customers with the replacement parts they need.The DS200CTBAG1ADD is a long and narrow PCB used as the termination board for the Mark V general-purpose data processor.This card is usually placed in <R5>.The board contains the system's IONET and COREBUS communication interfaces, as well as the I/O terminals.
Analog signals from this board are connected to and conditioned by the DS200TCCA board.The DS200CTBAG1ADD accepts 4-20 mA input and output signals as well as axis voltage and axis current signals.There is a bypass relay on the face of the board.This allows COREBUS communication to continue even when the CTBA board is powered down.The DS200CTBAG1ADDincludes two terminal blocks, vertical pin connectors, a relay, resistor network array, plug connectors, and jumper switches.The board is marked with the GE logo and carries its identifying board number.Each corner of the board is drilled to allow for mounting options; some of the drilled holes are surrounded by conductive material.The GE manual will give you more details on this board.Handling guidelines and warnings are provided in the original GE documentation.You should read these before you unbox the parts you purchased from AX Control.
